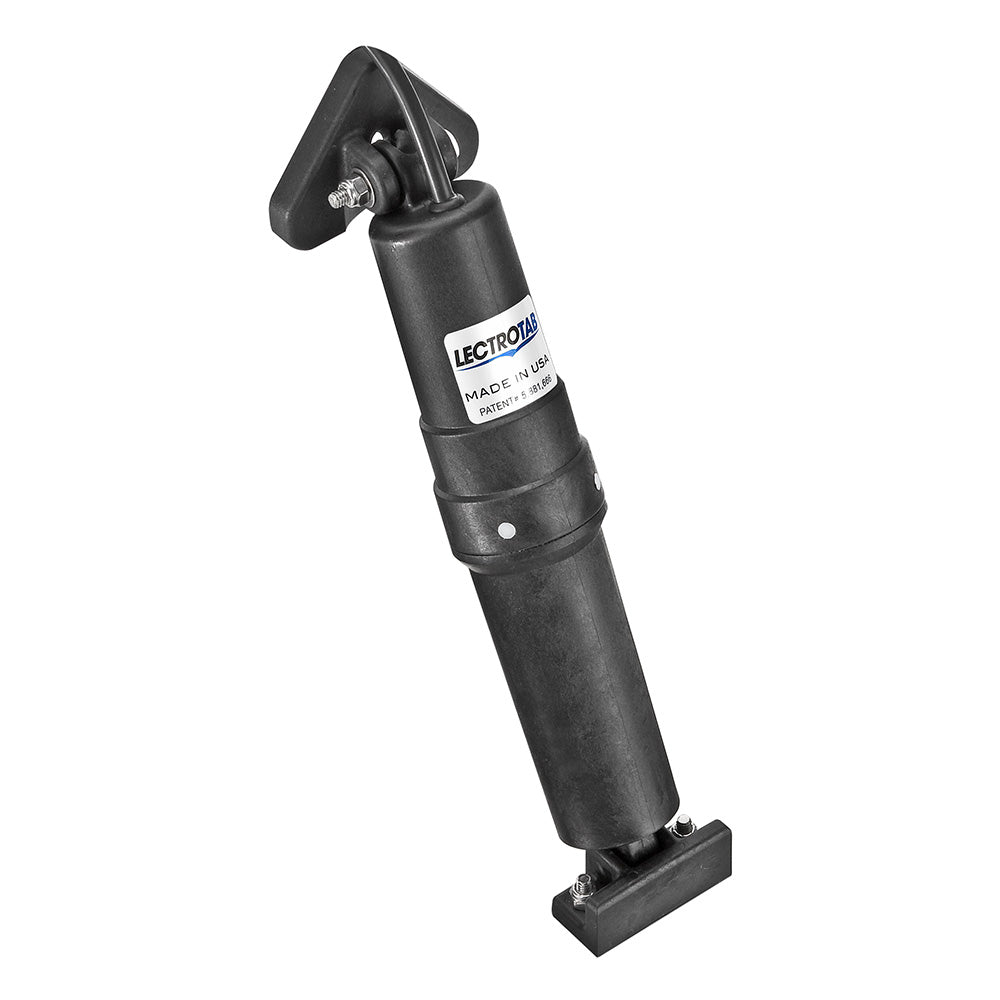

Lectrotab Standard Trim Tab Actuator - 12V - 28' Cable [A-BK-24]

Item #

CWR-113835

$238.99 $275.00 You Save 13% ($36.01)

Usually ships within 1-3 days

Description

Standard Trim Tab Actuator - 12V - 28' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

Actuator DC Voltage - 12V
28' Cable
The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
Utilizes an internal pressure equalization system
Upgrades to the most popular hydraulic and electromechanical systems
Internal brake system prevents unwanted tab movement when underway or backing down
Quiet operation
All actuators are fully load tested to push 1000 lbs of force
Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:
