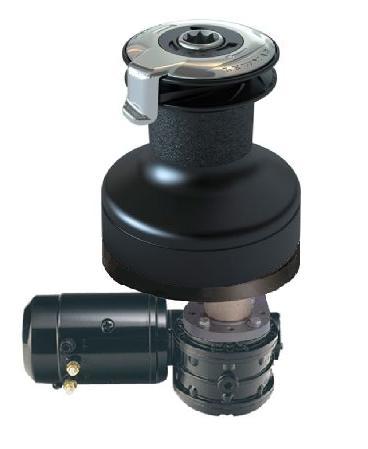

Lewmar 65EST EVO Electric Winch Aluminum Black

Item #

49565210

Usually ships within 1-3 days

Product Description

Lewmar 65EST EVO Electric Winch Aluminum Black

Specifications

  • Weight (Includes the weight of Motor Gearbox + Control Box) (lb) - 39.9

  • Mounting - 5x M10 (3/8) in c'sk head screws on 184mm (7 1/4 in) PCD

    Dimensions

  • H (in) - 10 3/4

  • L (in) - 5 9/16

  • M (in) - 11 7/16

  • P (in) - 2 7/16

  • T (in) - 2 5/16

  • U (in) - 6 1/4

  • V (in) - 3 1/8

  • B (in) - 9 1/4

  • Line Size (in) - 5/16-1/2

    Mounting Instructions:

    When installing a winch, Lewmar recommends the winch to be mounted on a level surface and that the rope enters the drum at an angle of 5 to 10 to the base axis of the winch. This angle can be achieved by using a base wedge when mounting the winch. Please note that not all mounting holes are symmetrical on all models.
