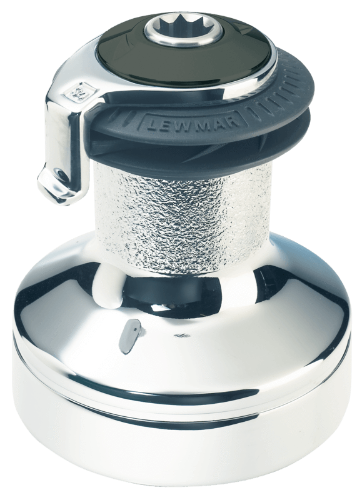

Lewmar 58ST Two Speed Self-Tailing Chrome Winch

Item #

49058001

Usually ships within 1-3 days

Product Description

Lewmar 58ST Two Speed Self-Tailing Chrome Winch

The ultimate self-tailing design, this winch is simple to use and provides a firm grip on the line. Adapts to a wide range of line diameter automatically.

Specifications

  • Gear Ratio 1st/2nd - 3.1:1/13.5:1

  • Power Ratio 1st/2nd - 13.5:1/58.1:1

  • Weight(lb) - 45.8

    Dimensions

  • Drum Diameter D(in) - 4 5/8

  • Base Diameter B(in) - 9

  • Height H(in) - 10 1/2

  • Line Entry L(in) - 4 11/16

  • Line Size(in) - 5/16-5/8

    Mounting Instructions

    Mounting Instructions 5 x M10 (3/8 in) c'sk head screws on 184mm (7 1/4 in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch.
