Product Description

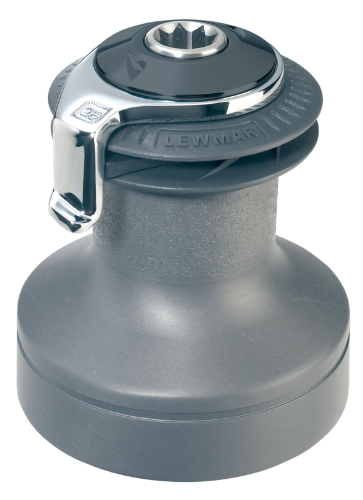

Lewmar 58ST Two Speed Self-Tailing Aluminum Winch
The ultimate self-tailing design, this winch is simple to use and provides a firm grip on the line. Adapts to a wide range of line diameter automatically.
Specifications
Gear Ratio 1st/2nd - 3.1:1/13.5:1
Power Ratio 1st/2nd - 13.5:1/58.1:1
Weight(lb) - 31.5
Dimensions
Drum Diameter D(in) - 4 5/8
Base Diameter B(in) - 9
Height H(in) - 10 1/2
Line Entry L(in) - 4 11/16
Line Size(in) - 5/16-5/8
Mounting Instructions
Mounting Instructions 5 x M10 (3/8 in) c'sk head screws on 184mm (7 1/4 in) PCD. Lewmar recommend that the rope enters onto the drum at an angle of 5 to 10 to the base axis of the winch. To achieve this angle it may be necessary to use a base wedge when installing the winch.
