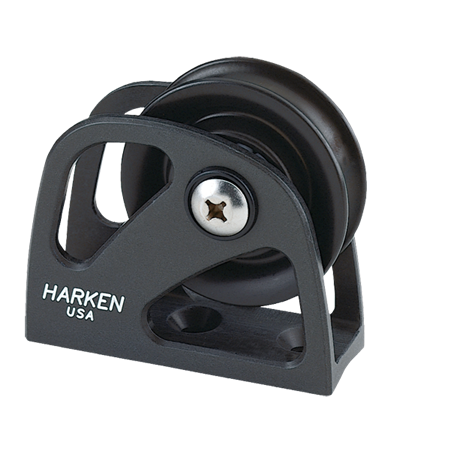

Harken 102 mm Fixed Mastbase Halyard Lead

Item #

3192

Product Description

Harken 102 mm Fixed Mastbase Halyard Lead

Low-profile mastbase halyard lead blocks are lightweight and can be grouped in a small area at the mastbase. Flared cheeks prevent chafe on the halyards. The high-load bearing system has a PTFE composite bushing and sideload balls. The sheave is hardcoat-anodized aluminum for additional strength.

Specifications:
  • Sheave Ø (in) - 4 in
  • Length (in) - 4 7/8 in
  • Width (in) - 1 15/16 in
  • Height (in) - 5 1/8 in
  • Weight (oz) - 35.25 oz
  • Maximum line Ø (in) - 5/8 in
  • Number of fasteners -
  • Fasteners (mm) - M16 SHCS mm
  • Maximum working load (lb) - 13227 lb
  • Breaking load (lb) - 26455 lb
