Faria Chesapeake White SS 2" Oil Pressure Gauge (80 PSI) [13802]

Item #

CWR-54650

Usually ships within 1-3 days

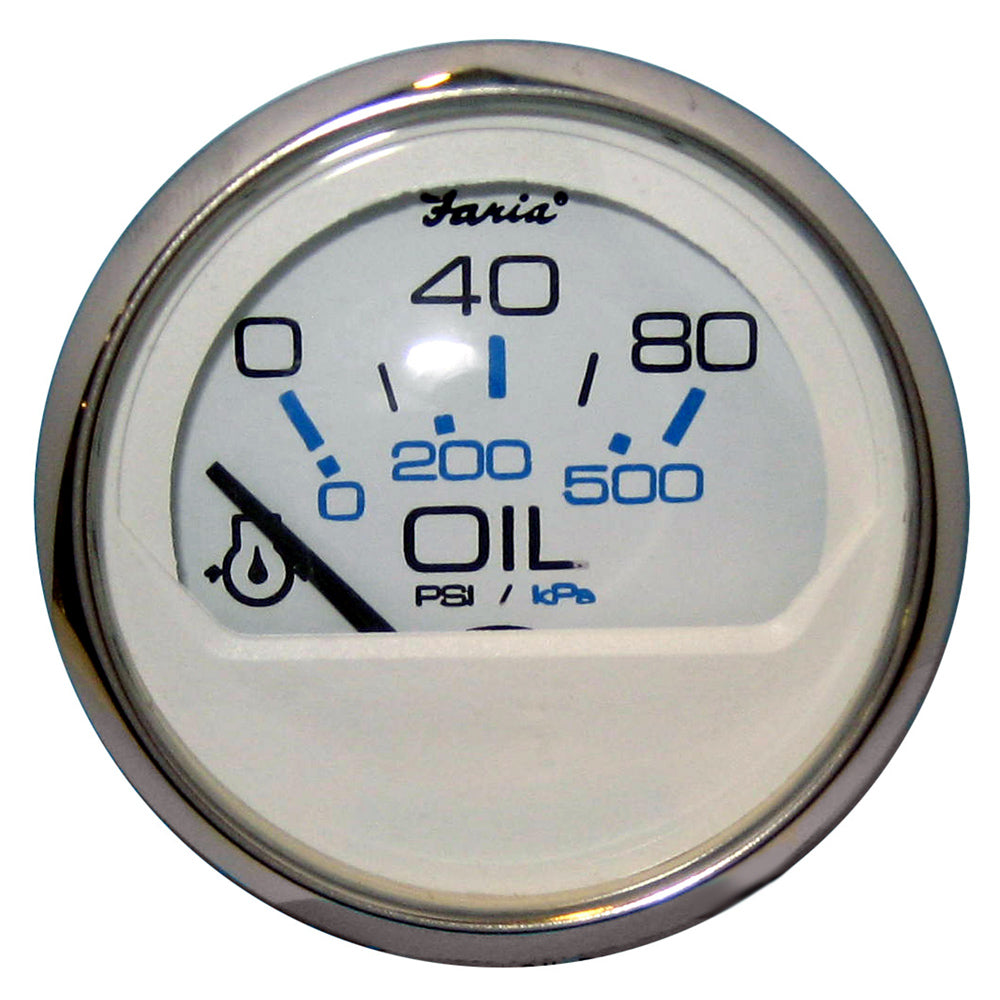

Chesapeake White SS 2" Oil Pressure Gauge (80 PSI)

Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.

A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.

2" - Hole size: 2.0625" (53mm)

Specifications:

  • Anti-scratch glass lens
  • Perimeter lighted back light
  • 12 VDC negative ground
  • Can be adapted for 24 VDC systems
  • Dual Scale - Imperial and Metric

Factory P/N GP9647

*Sold as an Individual

**Gauge Cover not Included

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Gauge Type: Oil Pressure
  • Series: Chesapeake White
  • Voltage - Input Range (Volts): 12/24 V
  • Gauge Size: 2"
  • Box Set: No
  • Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs
  • UPC: 759266138025

Quick Guide (pdf)
