Product Description

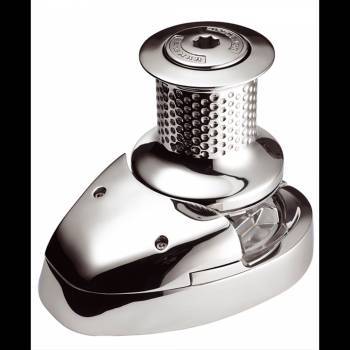

Lewmar V4 Gypsy Only 12V (202)
Lewmar introduces the worlds first compact stainless steel windlass for power and sail boats. The beautiful styled deck unit conceals a robust, reliable drive train, worm gearbox and splined shaft for maximum strength and control. Rope-chain or all-chain anchor rodes may be employed at the touch of a button, whilst the fully machined, low profile gypsy will keep your ropes in beautiful condition for years to come.
Kit includes: Rocker Switch, Circuit Breaker, Contactor and Winch Handle.
Dimensions
A - 2" (51mm)
B - 2 7/16" (91mm)
C - 7 1/16" (188mm)
D - 7 1/4" (185mm)
E - 3 1/2" (89mm)
F - 10 7/8" (277mm)
G1 - 4 1/4" (107mm)
G2 - 8 7/16" (215mm)
H - 4 7/16" (112mm)
I - 14 7/16" (366mm)
J - 7 5/16" (156mm)
Specifications
Voltage - 12V
Motor Power Watts - 1600W
Normal Current Draw - 125A
Circuit Breaker - 150A
Max Pull - 2750 lbs. (1250 kg)
Max Line Speed - 82ft/min (25m/min)
Working Load - 688 lbs. (313 kg)
Weight Gypsy Only - 79 lbs. (36 kg)
Gypsy Specifications
Gypsy Number - 202
Chain Description - 10mm DIN 766, 5/16" Campbell S3, 3/8" Campbell S4, 9.5mm G30
Rope Description - 5/8" (16mm)
