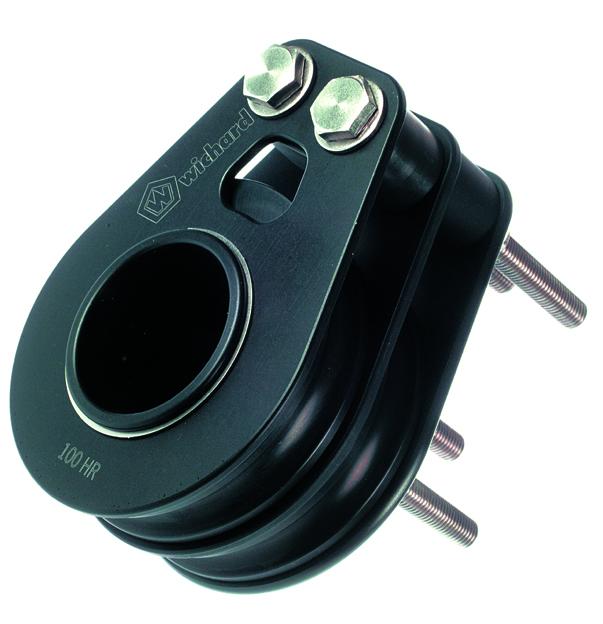

Wichard Double 3 15/32" (100mm) HR Roller Cheek Block

Item #

43220

Product Description

Wichard Double 3 15/32" (100mm) HR Roller Cheek Block

Features:

  • Weight: 3 lbs. (1386 g)

  • Sheave diameter: 3 15/16" (100mm)

  • Length: 5 19/32" (142mm)

  • Width: 4 3/32" (104mm)

  • Thickness: 2 9/16" (65mm)

  • Working load: 4400 Lbs (2000 kg)

  • Breaking load: 11000 Lbs (5000 kg)

  • WLL (working load limit): 2200 Lbs (1000 kg)

  • Rope Size: 9/16"-23/32" (16mm-18mm)

  • HR Shackle

    Applications

  • Cheek blocks applications for genoa sheet…

    Material

  • Titanium swivel head

  • Flanges, hubheave, sheave: hard anodised aluminium + Teflon

  • Torlon rollers

  • HR forged shackle (17.4 PH)
