Harken TR31 Straight Rail Section - 3M

Item #


Clear Anodized
Black Anodized

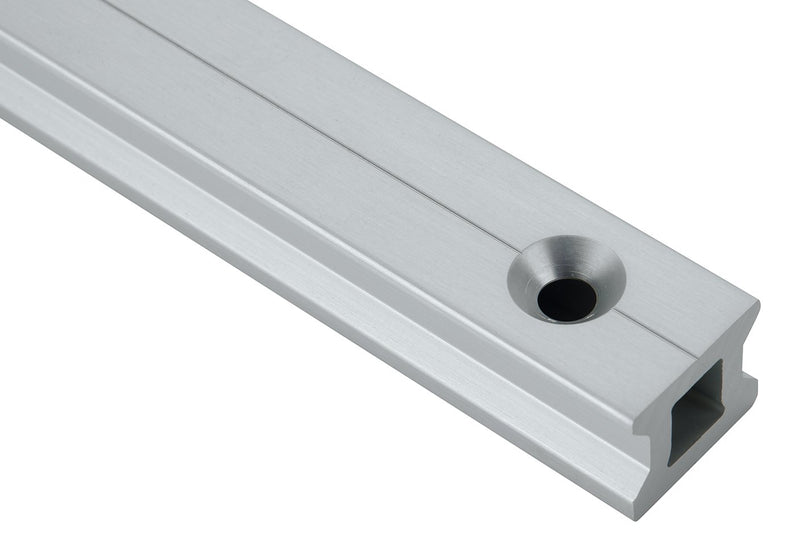

Harken TR31 Straight Rail Section - 3M

The Tight Radius rail and trolley system is designed to work as a movable anchorage point for fall protection. Rails are composed of straight and curved sections that change direction in both horizontal and vertical planes, allowing trolleys to run exceptionally smoothly around very tight radii and joints. 200 mm (7.9") radius curved sections are standard. High-strength, marine grade 6061-T6 aluminum rail. Anodized for maximum protection. Countersunk M10 fasteners for flush fitting.


Bend information Straight
Bend radius (mm) 200 mm
Arc length (m) 3 m
Arc length (ft/in) 9' 10 1/16" ft/in
Weight (g) 3840 g
Weight (lb) 8.47 lb
Fasteners (mm) M10 mm
Endstop 548
