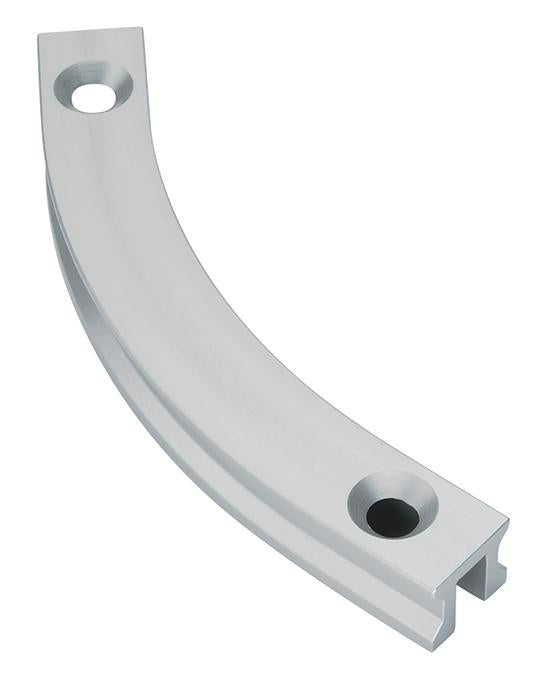

Harken TR31 Corner Rail - Horizontal 45°

Item #

IN205.CLEAR-1

$136.35 $151.50 You Save 10% ($15.15)

Usually ships within 1-3 days

Description

Harken TR31 Corner Rail - Horizontal 45°

The Tight Radius rail and trolley system is designed to work as a movable anchorage point for fall protection. Rails are composed of straight and curved sections that change direction in both horizontal and vertical planes, allowing trolleys to run exceptionally smoothly around very tight radii and joints. 200 mm (7.9") radius curved sections are standard. High-strength, marine grade 6061-T6 aluminum rail. Anodized for maximum protection. Countersunk M10 fasteners for flush fitting.

Arc length is to the inside of the radius.

Specifications:

Bend information	Horizontal 45°
Bend radius (mm)	200 mm
Arc length (m)	0.22 m
Arc length (ft/in)	8 11/16" ft/in
Weight (g)	350 g
Weight (lb)	0.77 lb
Fasteners (mm)	M10 mm
