Harken Industrial CE 6:1 Diver Recovery Purchase System - 9M ThrowRange of travel (m) 9 m

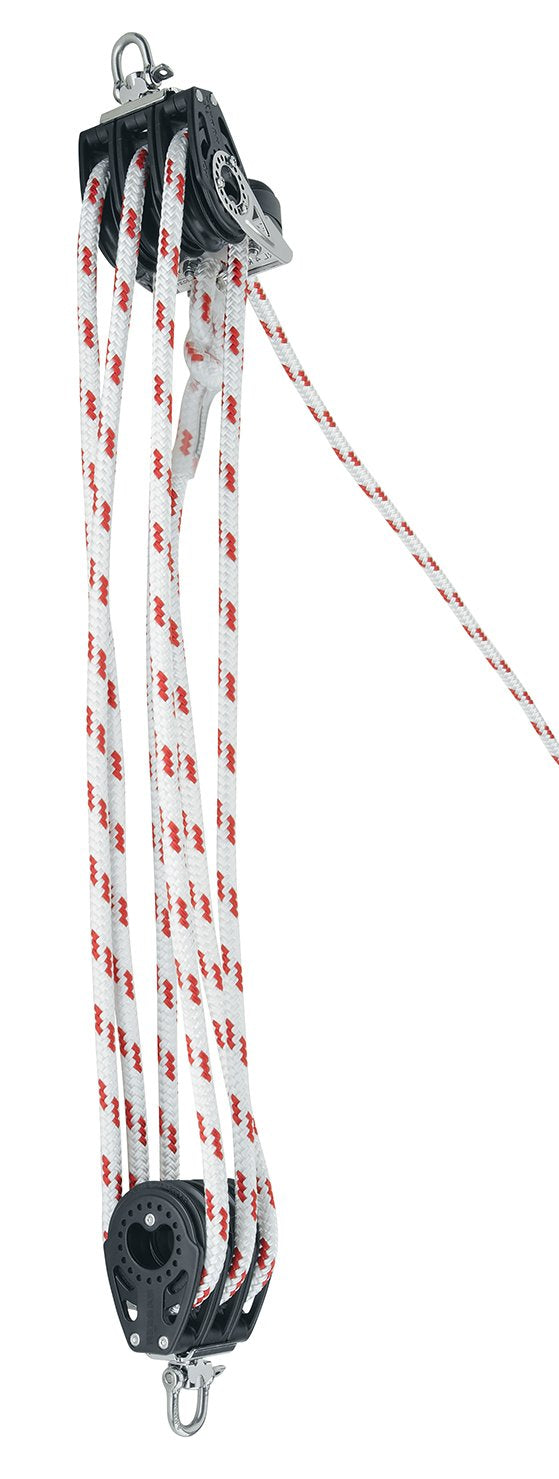

The Harken Industrial™ Diver Recovery Purchase System allows the single-handed recovery of a diver from inside a diving bell. Using proven Harken® marine components, Harken Industrial designed a reasonably priced strong, lightweight block and tackle system with a powerful 6:1 purchase.
To clean, simply flush pulleys with fresh water. Periodically soaking in fresh water is recommended when used in a marine environment to prevent salt crystal growth. As with all equipment, check regularly to make sure it is in good working order. Check rope for chafe and wear. Make sure tamper-evident seals are intact.
The 443.DRPS is supplied with an individual proof test certificate. The 443.DRPS can be used for human suspension when a safety factor of 10 is applied and used in conjunction with fall protection, in accordance with local standards and regulations. Contact Harken Industrial in the UK for purchase system sales/information.
Range of travel (ft) 29.5 ft
Maximum rated load (kN) 4.25 kN
Maximum rated load (lb) 937 lb
SWL for human suspension (kN) 1.7 kN
SWL for human suspension (lb) 375 lb
Individual proof-tested (kg) 300 kg
Individual proof-tested (lb) 660 lb
Ball Bearing Cam Cleats
Harken ball bearing cam cleats hold rope securely and release easily under load. Multiple rows of ball bearings reduce friction. The cam’s V-shape guides rope for easy entry.
Purchase systems are supplied pre-reeved and fully assembled. The securing knot is sealed to prevent irreparable damage to the system.
Polyester Rope and Safety Compliance
Purchase systems use polyester based rope in various sizes. The polyester braided covers are UV and abrasion resistant. Harken Industrial purchase systems are also serial numbered for full traceability.
Delrin® ball bearings provide low-friction, easy rope release under load. Ball bearings are UV-stabilized for maximum protection. Delrin is a registered trademark of E.I duPont de Nemours and Company or its affiliates.
CE certified under EN13157 (Machinery Directive).
