Harken 900 Electric UniPower Self-Tailing Radial Chrome with White Trim Winch

Item #

900UPWCW12

Available Power

Product Description

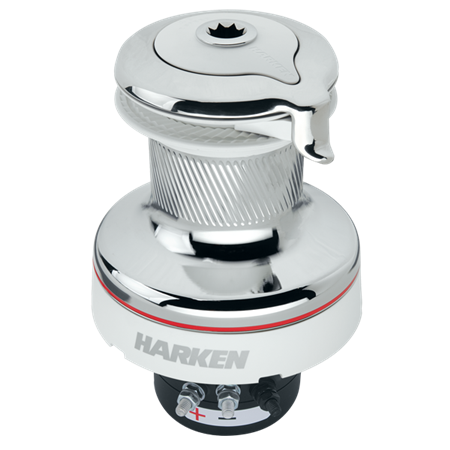

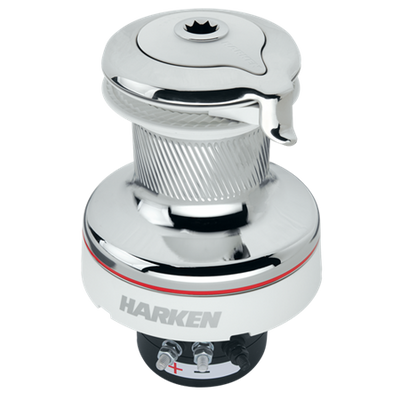

Harken 900 Electric UniPower Self-Tailing Radial Chrome with White Trim Winch

The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12- or 24-volt, low-amp-draw motor. What makes it unique is that the motor is partially embedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base—a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and don’t require lubrication. Gears are 17-4PH stainless steel for strength and durability.

Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.

Specifications


  • Fasteners:  5/16 HH, 5/16 SH (M8 HH, M8 SH)

  • Number of Fasteners:  5

  • Maximum Pull:  1,984 lbs (900 kg)

  • Available Power:  Electric Vertical, 12V or 24V

  • E:  1 3/8" (35mm)

  • F:  4 1/8" (105mm)

  • G:  5 1/2" (140mm)

  • Material:  Chrome

  • Configuration:  Self-Tailing

  • Speed:  1

  • Drum Diameter:  4 3/8" (110mm)

  • Base Diameter: 7 1/2" (190mm)

  • Height:  8 1/2" (215mm)

  • Weight:  32.0 lbs (14.5kg)

  • Line Entry Height:  3 15/16" (100mm)

  • Minimum Line Diameter:  5/16" (8mm)

  • Maximum Line Diameter:  9/16" (14mm)

  • Fastener Circle:  6 5/16" (160mm)
