Product Description

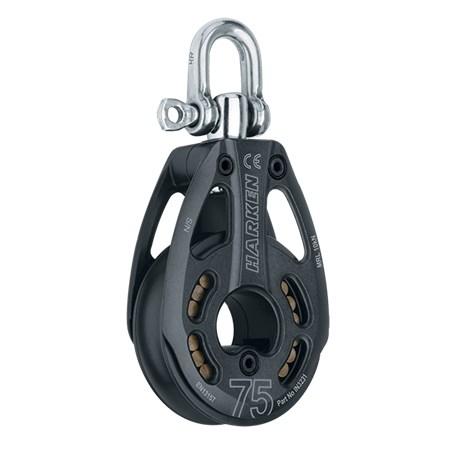

Harken 75mm Black Magic Single Pulley - Swivel
With high strength-to-weight ratios and free-rolling, high-load roller bearings, Black Magic Air pulleys handle high dynamic and static loads where friction is an issue. Pulley shackle locks in two directions or swivels to keep rope from twisting. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified.
Features:
- Pulley shackle locks in two directions or swivels to keep rope from twisting.
- Center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Captive Delrin® ball bearings carry side loads.
Specifications:
Sheave Diameter: 2 15/16 in. (75 mm)
Length: 5 1/8 in. (129 mm)
Shackle Pin Diameter: 5/16 in. (8 mm)
Weight: 0.73 lb. (331 g)
Maximum Line Ø: 9/16 in. (14 mm)
Maximum Rated Load : 2,248 lb (10 kN)
Downloads:
Click here for Product Manual
Click here for Product Data Sheet
