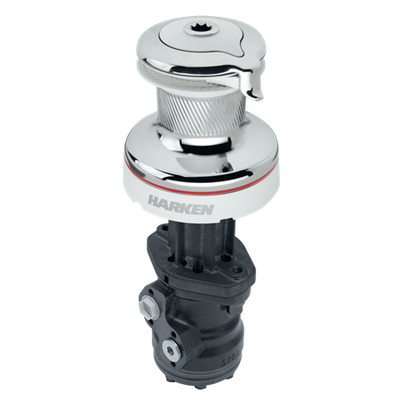

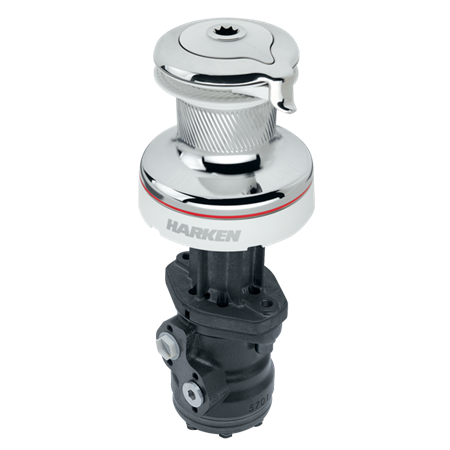

Harken #50 2 Speed Hydraulic Self-Tailing Radial Winch - Chrome with White Trim

Item #

50.2STHCW

Product Description

Harken #50 2 Speed Hydraulic Self-Tailing Radial Winch - Chrome with White Trim

Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don’t require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

Specifications:

  • Fasteners:  5/16" HH, 5/16" SH (M8 HH, M8 SH)

  • Number of Fasteners: 5

  • Gear & Power Ratio:

  • Gear 1 - 2.40

  • Gear 2 - 10.90

  • Power Ratio 1 - 10.90

  • Power Ratio 2 - 50.40

  • Dimensions:

  • Hydraulic (L):  9 1/4" (234mm)

  • Hydraulic (N):  5 1/8" (130mm)

  • Material: Chrome

  • Configuration: Self-tailing

  • Speed: 2

  • Drum Diameter:  4 5/16"  (110mm)

  • Base Diameter: 7 5/8"  (194mm)

  • Height:  8 5/16"  (212mm)

  • Weight: 20.3 lbs  (9.2kg)

  • Weight of Winch and Motor: 36.9 lbs (16.7kg)

  • Motor Weight:  16.6 lbs (7.5kg)

  • Line Entry Height:  3 7/8" (97mm)

  • Minimum Line Diameter:  5/16"  (8mm)

  • Maximum Line Diameter:  9/16" (14mm)

  • Fastener Circle: 5 7/8" (150mm)
