The Harken Industrial Access Rail system is designed to be used as an adjustable anchorage point for facility maintenance. The system provides freedom of vertical and horizontal movement at height, the ability to lock into position while working, can be used for fall protection, and human suspension.
The Access Rail system can be mounted in 3 horizontal planes. A wheel toggle attachment can be used for discrete over-edge parapet and inclined surface installations. Trolleys are available in black hardcoat or clear-anodized finishes for maximum corrosion protection. Other colors are available via special order.
Length (mm) 132 mm
Length (in) 5 3/16 in
Width (mm) 150 mm
Width (in) 5 15/16 in
Weight (g) 1977 g
Weight (lb) 4.36 lb
Maximum rated load (kN) 1 kN
Maximum rated load (lb) 220 lb
Use with track/rail IN1643, IN1650

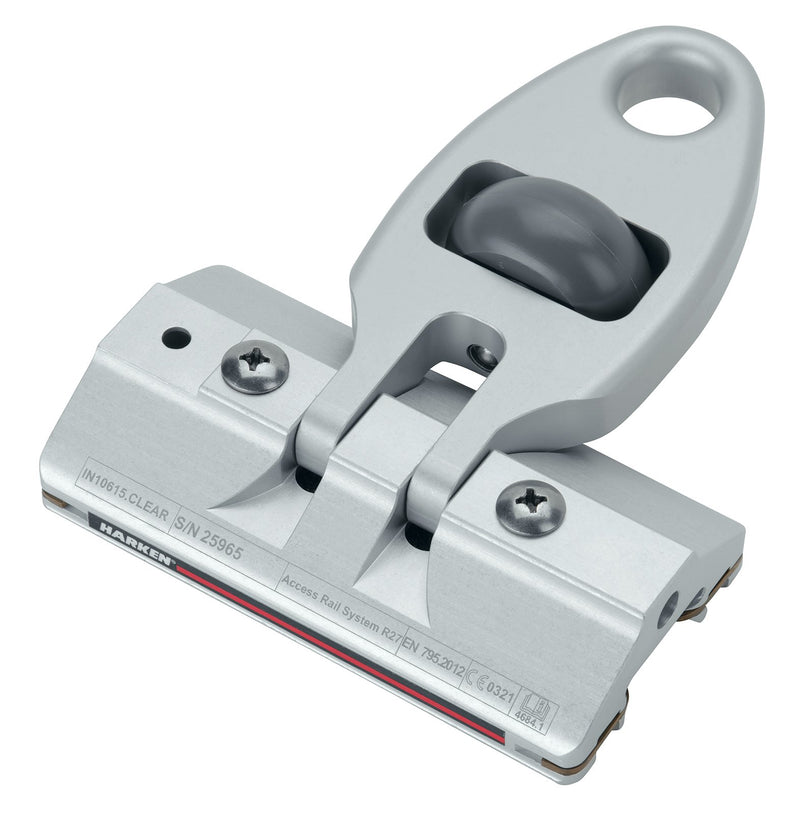

Lightweight trolleys are constructed of strong, one-piece solid aluminum. The adjustable pinstop allows trolleys to be moved along the rail and locked into a new location.
Torlon® ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail. Retaining clips keep ball bearings captive when the trolleys are removed for maintenance.
The 27 mm Access Rail system is independently tested and can be used for human suspension. The rails are EN795.2012 Type D compliant, meet ANSI Z359, and are OSHA compliant. The trolleys are CE certified under EN795.2012 Type B, meet ANSI Z359, and are OSHA compliant. For CE certification this must be used in conjunction with the full CE certified 27 mm Access Rail System.
