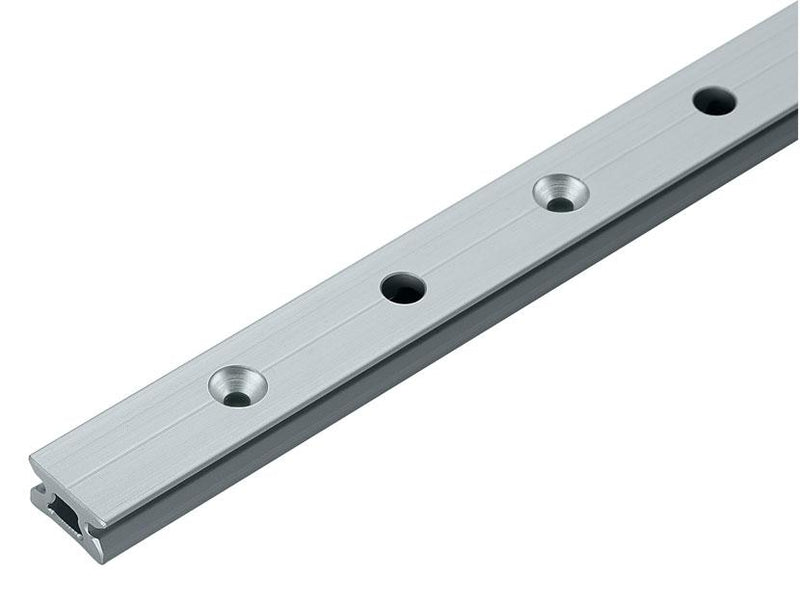

The Harken Industrial Access Rail system is designed to be used as an adjustable anchorage point for facility maintenance. The system provides freedom of vertical and horizontal movement at height, the ability to lock into position while working, can be used for fall protection, and human suspension. Rails are available in black hardcoat or clear-anodized finishes for maximum corrosion protection. Other colors are available via special order.
Length (mm) 3.6 m
Length (in) 11' 9 3/4" ft in
Fasteners (mm) 8 FH mm
Fasteners (in) 5/16 FH in
Mounting hole spacing (mm) 100 mm
Mounting hole spacing (in) 3 15/16 in
Splice Link IN1649
The 27 mm Access Rail system is independently tested and can be used for human suspension. The rails are EN795.2012 Type D compliant, meet ANSI Z359, and are OSHA compliant. The trolleys are CE certified under EN795.2012 Type B, meet ANSI Z359, and are OSHA compliant. For CE certification this must be used in conjunction with the full CE certified 27 mm Access Rail System.
