Product Description

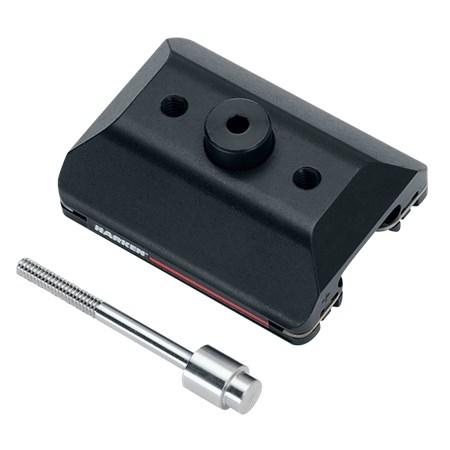

Harken 22mm Trolley with 2x 1/4-20 Tapped Holes and Central Threaded Pinstop
Trolleys feature recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for seat rail systems, window-washing apparatus, hoisting and moving stage equipment, and material handling. With 2x 1/4-20 tapped holes and central threaded pinstop, which when closed, locks the trolley in place.
Specifications:
Length: 2 7/8 in. (73 mm)
Width: 2 1/4 in. (57 mm)
Height: 2 15/16 in. (75 mm)
Weight: 5.19 oz. (147 g)
Max. Rated load (kN): 2.8 kN
Breaking load (kN): 11.1 kN
Minimum curved track radius: 3.5 ft (1.07 m)
Downloads:
