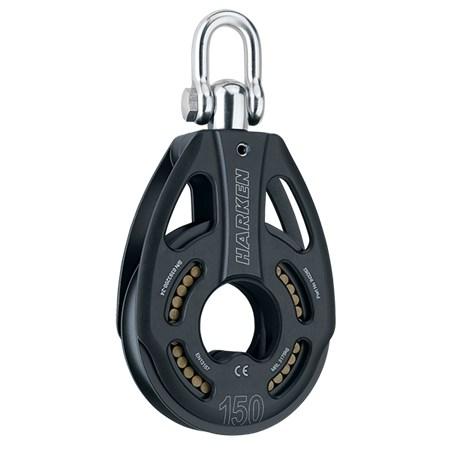

Harken 150mm Black Magic Single Pulley - Swivel
With high strength-to-weight ratios and free-rolling, high-load roller bearings, Black Magic Air pulleys handle high dynamic and static loads where friction is an issue. Pulley shackle locks in two directions or swivels to keep rope from twisting. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified.
- Pulley shackle locks in two directions or swivels to keep rope from twisting.
Sheave Diameter: 5 15/16 in. (150 mm)
- Center cage keeps Torlon® roller bearings separated and parallel to reduce friction. Captive Delrin® ball bearings carry side loads.
Length: 12 in. (305 mm)
Shackle Pin Diameter: 5/8 in. (16 mm)
Width: 6 1/32 in (153 mm)
Weight: 4.05 lb. (1840 g)
Maximum Line Ø: 1 in. (25 mm)
Maximum Rated Load : 6,969 lb (31 kN)
