Product Description

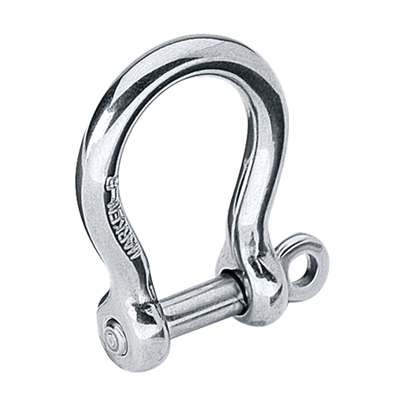

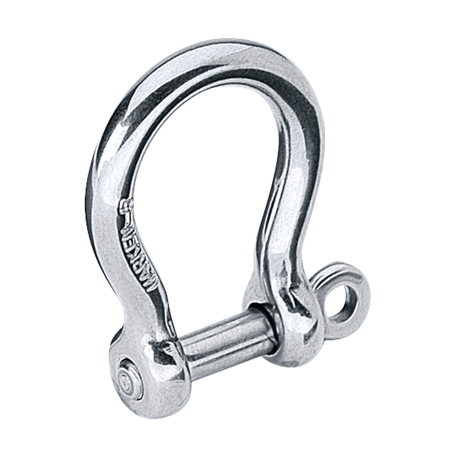

Harken 10mm Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Specifications:
Shackle pin Ø: 13/32 in. (10 mm)
Weight: 4.88 oz. (138.5 g)
A: 1 7/8 in. (48 mm)
B: 7/8 in. (22 mm)
C: 1 1/4 in. (32 mm)
Max. working load: 4870 lbs. (2210 kg)
Breaking load: 9740 lbs. (4420 kg)
