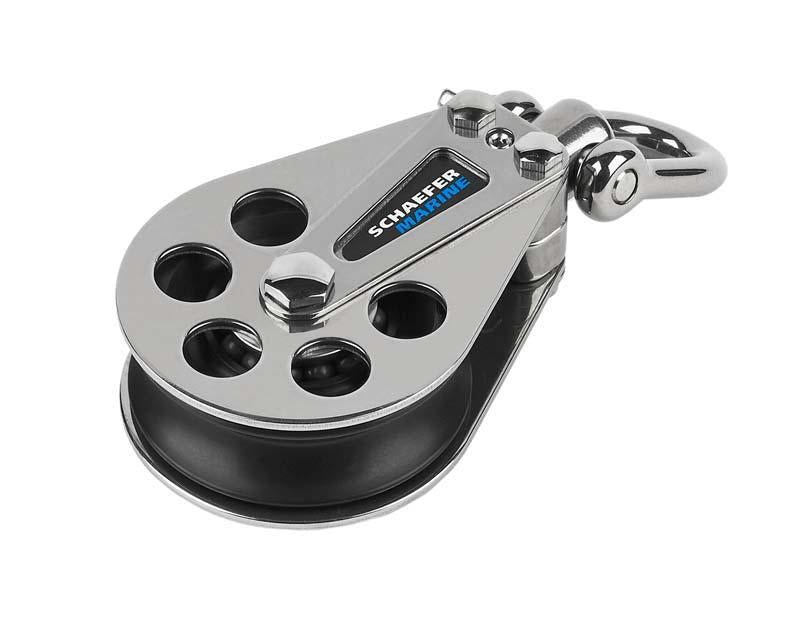

Schaefer S.S. Single Block w/ UC Sheave Max Line 9/16" (14mm)
8 Series Single block with Stainless Steel cheeks and Aluminum "universal circuit" ball bearing sheave. Aluminum sheave run on Delrin(tm) ball bearings for a very strong yet low-friction sheave. Stainless Steel D shackle run on a swivel head that may be locked in plate to avoid line twist. Bolted construction allows for easy maintenance.
Specifications:
Sheave Dia.: 2 3/8 in. (60 mm)
Sheave Width: 13/16 in. (21 mm)
Pin Dia.: 5/16 in. (8 mm)
Thickness: 1 3/32 in. (28 mm)
Width: 2 3/8 in. (60 mm)
Length: 5 5/8 in. (143 mm)
SWL: 2750 lbs. (1250 kg)
Weight: 13.8 oz. (391 g)
Max Line: 9/16 in. (14 mm)
Max Wire: 3/16 in. (5 mm)
