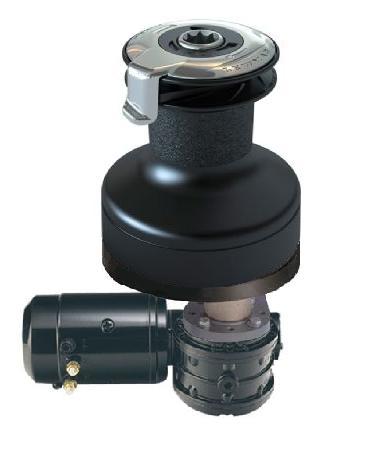

Lewmar 50EST EVO Electric Winch Aluminum Black

Item #

49550210

Usually ships within 1-3 days

Product Description

Lewmar 50EST EVO Electric Winch Aluminum Black

Specifications

  • Weight (Includes the weight of Motor Gearbox + Control Box) (lb) - 39.3

  • Mounting - 6x M8 (5/16) in c'sk head screws on 150mm (5 29/32 in) PCD

    Dimensions

  • H (in) - 9 2/3

  • L (in) - 4 9/64

  • M (in) - 9 25/64

  • P (in) - 1 31/32

  • T (in) - 2 17/32

  • U (in) - 2 3/4

  • V (in) - 2 55/64

  • B (in) - 7 21/64

  • Line Size (in) - 5/16-1/2

    Mounting Instructions:

    When installing a winch, Lewmar recommends the winch to be mounted on a level surface and that the rope enters the drum at an angle of 5 to 10 to the base axis of the winch. This angle can be achieved by using a base wedge when mounting the winch. Please note that not all mounting holes are symmetrical on all models.
